Heat Trace Cables
HSRL Self-Regulating Heating Cable for Division 1 Areas
Our heating cables are engineered to handle a wide range of applications, including maintaining process temperatures, preventing pipe freezing, providing long line heating, ensuring flow assurance, maintaining hot water temperatures, de-icing roofs and gutters, melting snow on surfaces, preventing frost heave, and delivering reliable floor heating solutions.

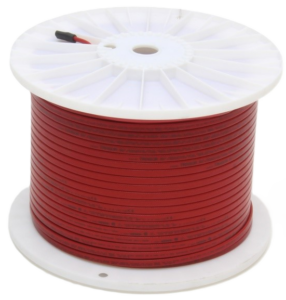

HSRL Self-regulating Heating Cable provides safe, reliable heat tracing for freeze protection of pipes, valves, tanks, and similar applications. Constructed of industrial-grade 16 AWG buss wire with a tinned copper braid and optional over jacketing. HSRL ensures operating integrity in Class I, Div. 1 hazardous environments and in certain corrosive industrial environments. HSRL heating cable has a maximum maintenance temperature rating of 150°F (65°C).
Features:
- Approved for Class I Div. 1 areas
- Easy to design
- Cut to length in the field
- Cable can be overlapped
- Wattages: 3, 5, 8 & 10 w/ft.
- Can be easily field spliced
- 120V-277VAC
- Maximum exposure temperature of 185°F
- Maximum maintain temperature of 150°F
- Ideal for short cable lengths
HSRM High Temp Self-Regulating Heating Cables for Division 1 Areas

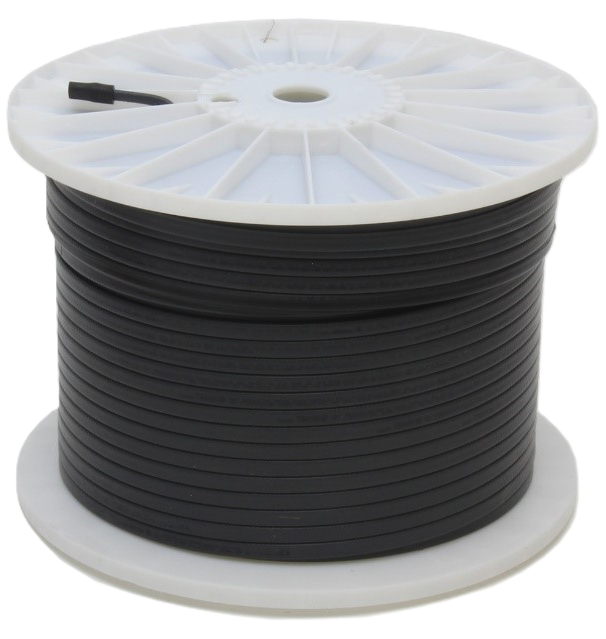

HSRM self-regulating heating cable provides safe, reliable heat tracing for process temperature maintenance and freeze protection of pipes, valves, tanks, and similar applications. Constructed of industrial-grade 16 AWG buss wire with metal braid and a fluoropolymer over-jacketing, HSRM ensures operating integrity in most hostile industrial environments. The 420 °F (215 °C) maximum exposure temperature rating allows steam cleaning of process equipment with up to 300 psi steam.
Features:
- Approved for Class I Division 1 areas
- Easy to design
- Cut to length in the field
- Cable can be overlapped
- Wattages: 5, 8,10, 15 & 20 w/ft.
- Can be easily field spliced
- 120V-277 VAC
- Maximum exposure temperature of 420°F
- Maximum maintain temperature of 302°F
- Ideal for short cable lengths
