Daniel Venturi Tube

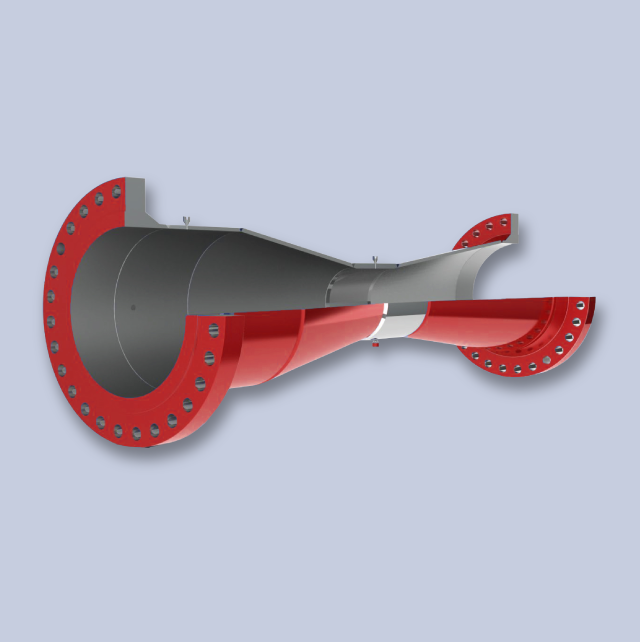

DANIEL® VENTURI TUBE

The Daniel Venturi Tube provides a dependable and low-maintenance solution for differential pressure flow measurement in a wide range of fluid applications. Its rugged, streamlined design eliminates sharp edges and abrupt transitions, making it particularly well-suited for services that contain solids, particulates, or slurries.

The Venturi’s gradual converging and diverging profile helps prevent material buildup and fouling, allowing the meter to maintain stable and accurate measurements over long operating periods with minimal maintenance.

Another key advantage of the Venturi design is its extremely low permanent pressure loss. By minimizing pressure drop across the meter, operating and pumping costs are reduced, making it an excellent choice for low-pressure systems where only small differentials are available.

These meters are commonly used for measuring gas, liquid, and steam flow and are widely applied in industries such as oil and gas processing, petrochemical production, power generation, and water and wastewater treatment.

Specifications:

• Standard Accuracy:
  • 0.5% standard, higher accuracy available with calibration
• Flow Ranges (turndown): 10:1 or greater
• Repeatability: ± 0.1% or better
• Permanent Pressure Loss: Varies with DP and Beta (H/D) Ratio
• Beta Ratio: 0.4, 0.5, 0.6, 0.7; Additional betas available by request.
• Line Sizes:
  • 2” to 24” – 26” and larger – available in any flange specification.
• Pressure Ratings: ANSI 150 thru 2500U
• Construction Materials: All Grades of Stainless Steel, Carbon Steel, and Alloys or any other weldable material.
• End Configuration: Wafer, Flanged, Beveled, Threaded and Others
• Approvals: CE-PED 2014/68/EU, CRN

Applications:

• Provides measurement accuracy of ±0.5% and repeatability of ±0.1%.
• Available in a wide range of pipe sizes from 2” to 24”, with larger sizes available upon request.
• Choose from flanged, threaded, beveled, or wafer options to suit your system’s needs.
• Available in stainless steel, duplex steel, carbon steel, and custom alloys to meet specific operational demands.
• Manufactured to ISO 5167-4 standards, ensuring consistent quality and performance.
• Lower pressure drop than other primary elements, reducing energy costs.
• With no moving parts, the Venturi Tube requires minimal upkeep and is resistant to wear.
• Capable of measuring gas, liquid, and steam across a wide range of industries.
• Designed to withstand extreme pressures and temperatures, making it ideal for demanding environments.
