Daniel Cone Meter

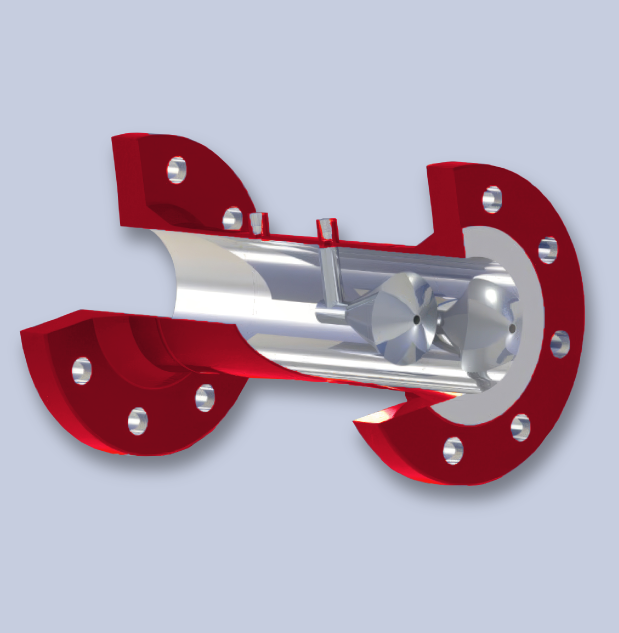

Differential Pressure Cone Meter
The Daniel Cone Meter is a high-performance differential pressure flow meter designed to deliver accurate and repeatable measurements across a wide range of process applications. Its innovative cone-shaped flow element conditions the fluid as it passes through the meter, improving measurement stability and reliability.
Engineered for versatility, the cone meter performs well in gas, liquid, and steam service and is well-suited for demanding operating environments. The design also helps maintain consistent measurement accuracy even in applications with changing flow conditions.
Because of its dependable performance and adaptability, the cone meter is widely used across industries such as oil and gas production, petrochemical processing, and power generation, where reliable flow measurement is critical.
Specifications:
- Standard Accuracy:
- ± 0.5% to ± 5.0% of actual flow. Flow Lab calibration may be required to achieve the lowest possible accuracy.
- Flow Ranges: 10:1 or greater
- Repeatability: ± 0.1% or better
- Permanent Pressure Loss: Varies with dP and Beta Ratio
- Beta Ratio: 0.4, 0.5, 0.6, 0.7, 0.8 (special betas available)
- Line Sizes:
- 2″ to 24″ – 26″ and above – Series “A” & “B” ANSI 150 thru 600
- Pressure Ratings: ANSI 150 thru 2500
- Construction Materials: All Grades of Stainless Steel, Carbon Steel and Alloys or any other weldable material.
- End Configuration: Beveled, Flanged, Threaded, hubs, and others.
- Approvals: CE-PED 2014/68/EU, CRN
Applications:
- Standard accuracy ranges from ±0.5% to ±5.0% of actual flow, with flow lab calibration available for the highest accuracy.
- Capable of flow ranges with a 10:1 turndown or greater, providing versatility for various applications.
- Choose from a wide range of beta ratios (0.4 to 0.8), ensuring the right configuration for your system.
- Available in all grades of stainless steel, duplex steel, carbon steel, and other materials to meet your specific operational requirements.
- End connections include beveled, flanged, threaded, hubs, and more to suit your installation needs.
- The Cone Meter has no moving parts, minimizing maintenance requirements and ensuring long-term reliability.
- Delivers consistent repeatability of ±0.1% or better, ensuring accurate measurements over time.
